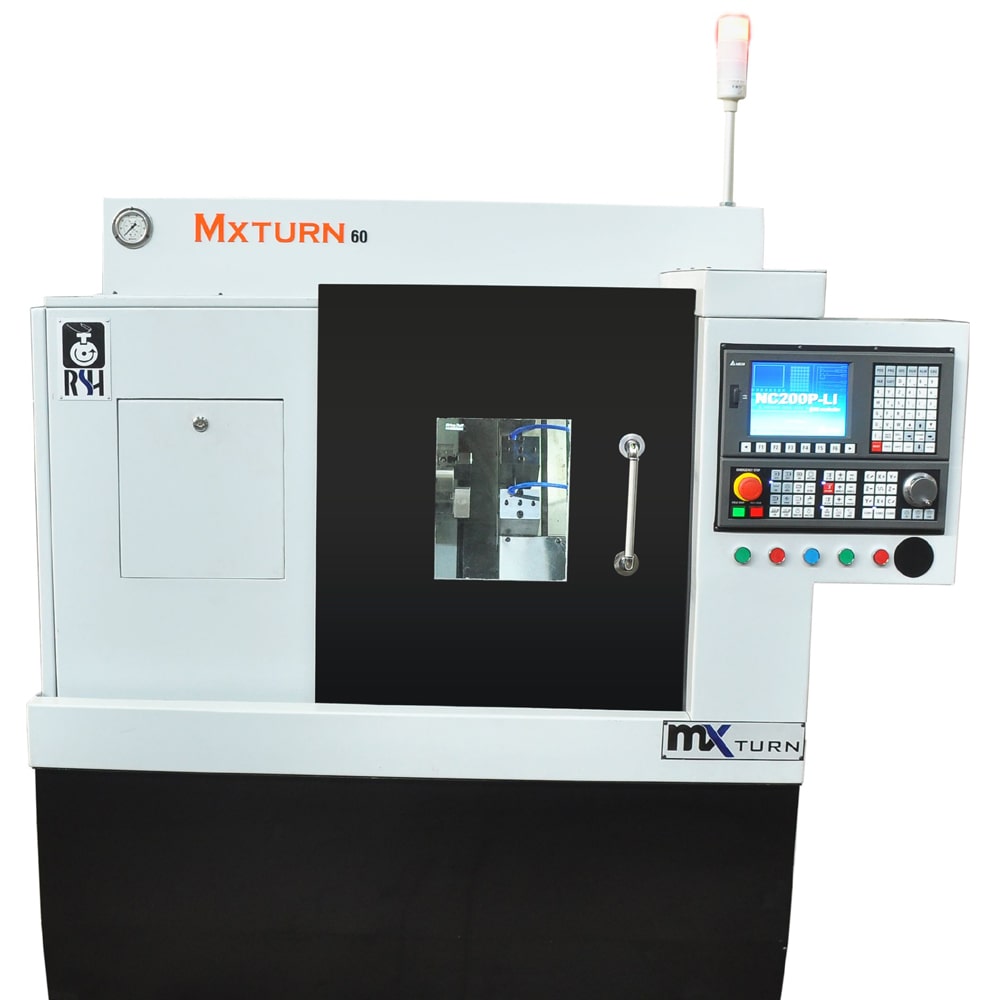

CNC Liner Turning MX TURN 60
CNC Liner Turning MX TURN 60
Specification
| CAPACITY | ||
|---|---|---|
| Max.Turning Length | mm | 150* |
| Max.Dia Swing on Bed | mm | 320 |
| Std.Turning Diameter | mm | 60* |
| Max Dia Turn on Table | mm | 140 |
| SLIDES | ||
| Cross(X-Axis) | mm | 240 |
| Longitudinal (Z-Axis) Travel | mm | 150 |
| Rapid Feed (X & Z Axis) | m/min | 30 |
| MAIN SPINDLE | ||
| Spindle Motor Power | Induction | 3.7/5.5 kw* |
| Spindle Bore | mm | 44 |
| Spindle Nose | A24 | |
| STD.Chuck Dia | mm | 135 |
| Max.Bar Capacity | mm | 28 |
| Spindle Speed Range | rpm | 100/3500 |
| Full Power Speed Range | rpm | 800-3000 |
| Tooling (Gang Style) | ||
| Tool Holder height x width | mm | 20x20 |
| Boring Bar Diameter | mm | 25max |
| Accuracy (As per VDI/DGQ 3341) | ||
| Positioning | mm | 0.003 |
| Repeatability | mm | 0.008 |
| Machine Size | ||
| Machine Height | mm | 1550 |
| Floor Space (Length x width) | mm | 1380 x 1380 |
| Machine Weight | Kgs | 1300 Approx) |
